VA-06 Airsweep® (3/4")

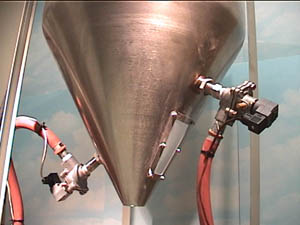

Stainless steel VA-06 Airsweeps keep batch hopper flowing.

· For small hoppers, pipes, ducts, etc.
· Activates 2-3’ diameter of material
· Threaded mounting style
· Uses 0.5 cf per pulse

VA-12 Airsweep® (1.5")

VA-12 Airsweep gives on-demand flow of calcium
carbonate at plastics manufacturer.

· For medium to large hoppers, containers, etc.
· Activates 6-8’ diameter of material
· Threaded mounting style
· Uses 1.6 cf per pulse

VA-51 Airsweep® (2")

Stainless Steel VA-51 Airsweeps shown here on table salt hopper.

· For large hoppers, containers, etc.
· Activates 6-8’ diameter of material
· Push-through O-ring and set screw mounting style
· Uses 2.4 cf per pulse

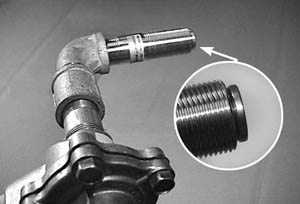

Straight Shooter™ Airsweep

The Straight Shooter™ Airsweep employs a small design change in the piston head allowing the full blast of air to extend in a tight column directly in front of the nozzle, like a small air cannon. The unit instantly re-seals to prevent clogging or material feedback.

The "fire hose" effect of the air pulse makes these mini-blasters perfect for larger material or for areas where the standard Airsweep cannot be mounted (across from inaccessible walls, etc.)

Units can be easily mounted to blast in any direction, using standard pipe elbows or fittings. Straight Shooters can even be mounted inside a vessel to blast away areas of buildup.
