Magnet Separator
Steel Plate Separator
Purpose:
· Separating steel plate for easy handling

Feature:
· Heavy duty permanent magnet enclosed in Stainless steel / mild
steel casing;
· Magnetic field concentrated at one magnet face only;
· Easy installation with M12 mounting holes

Application area:
· Stamping press metal sheet feeding station
· Metal sheet slitting

Specification:
· Dimension: 450L x 125W (mm)
· Unit weight: 12kg
· Capacity: for plate thickness max 2.0mm


Suspension Type For Mini Conveyor
Purpose:
· Remove foreign iron pieces from process material

Feature:
· Suspension above small belt conveyor;
· Heavy duty permanent magnet enclosed in Stainless steel / mild steel casing;
· Magnetic field concentrated at one magnet face only;
· Easy installation with M12 mounting holes;

Application area:
· Palm oil;
· Rice;
· Curry powder;
· Cocoa
· Food conveyor;
· Plastic granule conveying
· Medical
· etc.

Specification:
· Dimension: 450L x 125W (mm)
· Unit weight: 12kg
· Holding capacity: 0.01 to 5 kg (at contact surface)
· Collecting height: 50 to 100 mm

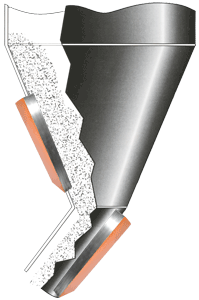

Chute Type Separator
Purpose:
· Trap foreign iron pieces from process material

Feature:
· Heavy duty permanent magnet enclosed in Stainless steel / mild steel casing;
· Magnetic field concentrated at one magnet face only;
· Easy installation with M12 mounting holes

Application area:
· Material storage hopper;
· Conveying chute
· Pneumatic conveyor duct

Specification:
· Dimension: 450L x 125W (mm)
· Unit weight: 12kg
· Holding capacity: 0.01 to 5 kg (at contact surface)


Heavy duty self cleaning permanent magnet separator
Purpose:
· Remove foreign iron pieces from process material automatically and continuously.

Feature:
· Suspension above belt conveyor;
· Standard or Super-strength Permanent magnet or electromagnet type;
· Self cleaning belt automatically remove the collected iron pieces;
· Suitable for belts varies from 500mm to 2400mm.

Industry serve:
· Cement
· Quarry
· Foundry
· Coal

Specification:
· Dimension: 450L x 125W (mm)
· Unit weight: 12kg
· Holding capacity: 0.1 to 5 kg
· Collecting height: 100to 300 mm


Permanent Magnet Lifter
Purpose:
· Easy handling of steel plates, blocks, shaft, pipes, mould & dies

Feature:
· Suspend by overhead crane or hoist;
· Super-strength Permanent magnet;
· Self release level for unload;

Application areas:
· Steel fabrication;
· Steel material stockist;
· Machining shop;
· Piping works;
· Construction site

Specification:
· Rated Lifting Capacity: 100 to 2000 kg


Electromagnet Lifter
Purpose:
· Heady duty handling of steel scrap, plates, coils, pipes, and hot billets.

Feature:
· Suspend by overhead crane or hoist;
· Standard normal or high temperature series.

Application areas:
· Scrap yard;
· Steel mills
· Foundry

Specification:
· Rated Lifting Capacity: 100 to 24,000 kg
